Documentation for Semantic Model 3
Definition Type: Element
Name: CopyJobElements
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:CopyJobElementsType
Containing Schema: PwgCopyOpMsg.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

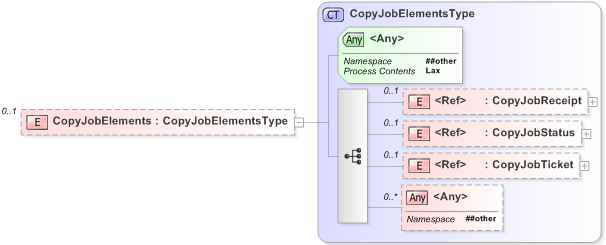

Collapse XSD Schema Diagram:
Drilldown into CopyJobTicket Drilldown into CopyJobStatus Drilldown into CopyJobReceipt Drilldown into CopyJobElementsTypeXSD Diagram of CopyJobElements
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="CopyJobElements" type="CopyJobElementsType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CopyJobReceipt pwg:CopyJobReceipt 0 (1)
CopyJobStatus pwg:CopyJobStatus 0 (1)
CopyJobTicket pwg:CopyJobTicket 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
