Documentation for Semantic Model 3
Definition Type: ComplexType
Name: ContentRegionType
Namespace: http://www.pwg.org/schemas/2016/01/sm
Containing Schema: PwgCommon.xsd
Abstract

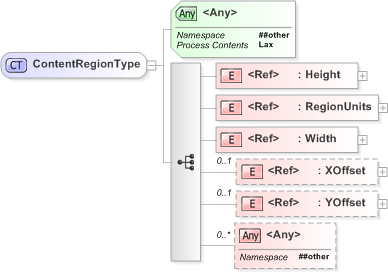

Collapse XSD Schema Diagram:
Drilldown into YOffset Drilldown into XOffset Drilldown into Width Drilldown into RegionUnits Drilldown into HeightXSD Diagram of ContentRegionType
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:complexType name="ContentRegionType">
    <xs:sequence>
        <xs:element ref="pwg:Height" />
        <xs:element ref="RegionUnits" />
        <xs:element ref="pwg:Width" />
        <xs:element ref="pwg:XOffset" minOccurs="0" />
        <xs:element ref="pwg:YOffset" minOccurs="0" />
        <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Height pwg:Height (1) (1)
RegionUnits pwg:RegionUnits (1) (1)
Width pwg:Width (1) (1)
XOffset pwg:XOffset 0 (1)
YOffset pwg:YOffset 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
pwg:ImageBox, pwg:ScanRegion
