Definition Type: Element
Name: AgreementMethod
Namespace: http://www.w3.org/2001/04/xmlenc#
Type: xenc:AgreementMethodType
Containing Schema: xenc-schema.xsd
Abstract

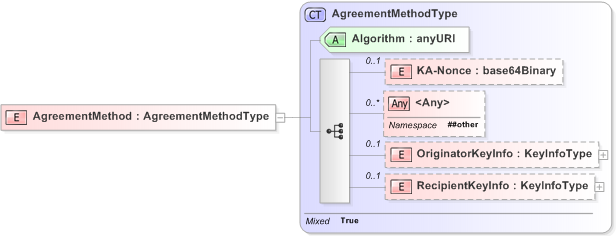

Collapse XSD Schema Diagram:
Drilldown into RecipientKeyInfo Drilldown into OriginatorKeyInfo Drilldown into KA-Nonce Drilldown into Algorithm Drilldown into AgreementMethodTypeXSD Diagram of AgreementMethod
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<element name="AgreementMethod" type="xenc:AgreementMethodType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
KA-Nonce xenc:KA-Nonce 0 (1)
OriginatorKeyInfo xenc:OriginatorKeyInfo 0 (1)
RecipientKeyInfo xenc:RecipientKeyInfo 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
Algorithm xenc:Algorithm Required
Collapse Derivation Tree:
