Documentation for Semantic Model 3
Definition Type: Element
Name: AcknowledgePrintDocumentRequest
Namespace: http://www.pwg.org/schemas/2016/01/sm
Type: pwg:AcknowledgePrintDocumentRequestType
Containing Schema: PwgPrintOpMsg.xsd
Abstract

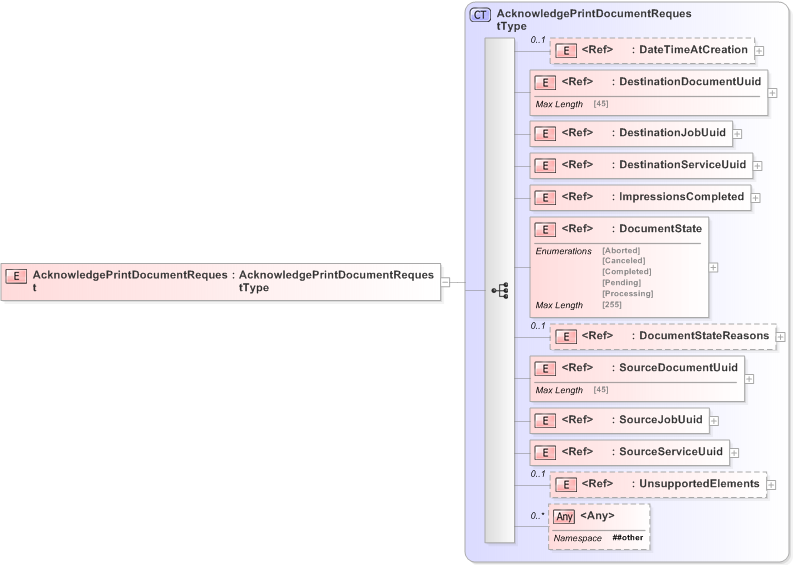

Collapse XSD Schema Diagram:
Drilldown into UnsupportedElements Drilldown into SourceServiceUuid Drilldown into SourceJobUuid Drilldown into SourceDocumentUuid Drilldown into DocumentStateReasons Drilldown into DocumentState Drilldown into ImpressionsCompleted Drilldown into DestinationServiceUuid Drilldown into DestinationJobUuid Drilldown into DestinationDocumentUuid Drilldown into DateTimeAtCreation Drilldown into AcknowledgePrintDocumentRequestTypeXSD Diagram of AcknowledgePrintDocumentRequest
Collapse XSD Schema Code:
<?xml version="1.0" encoding="utf-16"?>
<xs:element name="AcknowledgePrintDocumentRequest" type="AcknowledgePrintDocumentRequestType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateTimeAtCreation pwg:DateTimeAtCreation 0 (1)
DestinationDocumentUuid pwg:DestinationDocumentUuid (1) (1)
DestinationJobUuid pwg:DestinationJobUuid (1) (1)
DestinationServiceUuid pwg:DestinationServiceUuid (1) (1)
ImpressionsCompleted pwg:ImpressionsCompleted (1) (1)
DocumentState pwg:DocumentState (1) (1)
DocumentStateReasons pwg:DocumentStateReasons 0 (1)
SourceDocumentUuid pwg:SourceDocumentUuid (1) (1)
SourceJobUuid pwg:SourceJobUuid (1) (1)
SourceServiceUuid pwg:SourceServiceUuid (1) (1)
UnsupportedElements pwg:UnsupportedElements 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Derivation Tree:
